Nested Loops

The placing of one loop inside the body of another loop is called nesting. When you “nest” two loops, the outer loop takes control of the number of complete repetitions of the inner loop. How this works is that the first pass of the outer loop triggers the inner loop, which executes to completion. Then the second pass of the outer loop triggers the inner loop again. This repeats until the outer loop finishes.

A Nested for loop (in most computer programming languages) takes the generic form of:

FOR counter in range(n)
FOR counter in range(m)
statement(s)
END
END

or using While loops:

WHILE counter1 <= n :
WHILE counter2 >= m :
statement(s)
…
counter2 = counter2 + 1
END
…
counter1 = counter1 + 1
END

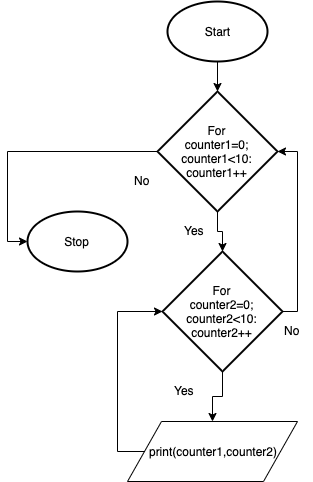

In a flow chart it looks like:

Nested Loops

The following code snippet is a nested loop example of a 2 digit odometer:
